Procedural Planet Generation

Procedural Planet Generation (PPG) is an Unreal Engine plugin for building large spherical worlds from runtime-generated terrain chunks, material-driven elevation, biome masks, foliage, water, and optional volumetric cloud integration.

The plugin contains runtime code, shaders, editor-facing data assets, material nodes, and example content. Its main workflow is centered around a Planet Data Asset assigned to a Planet Spawner actor.

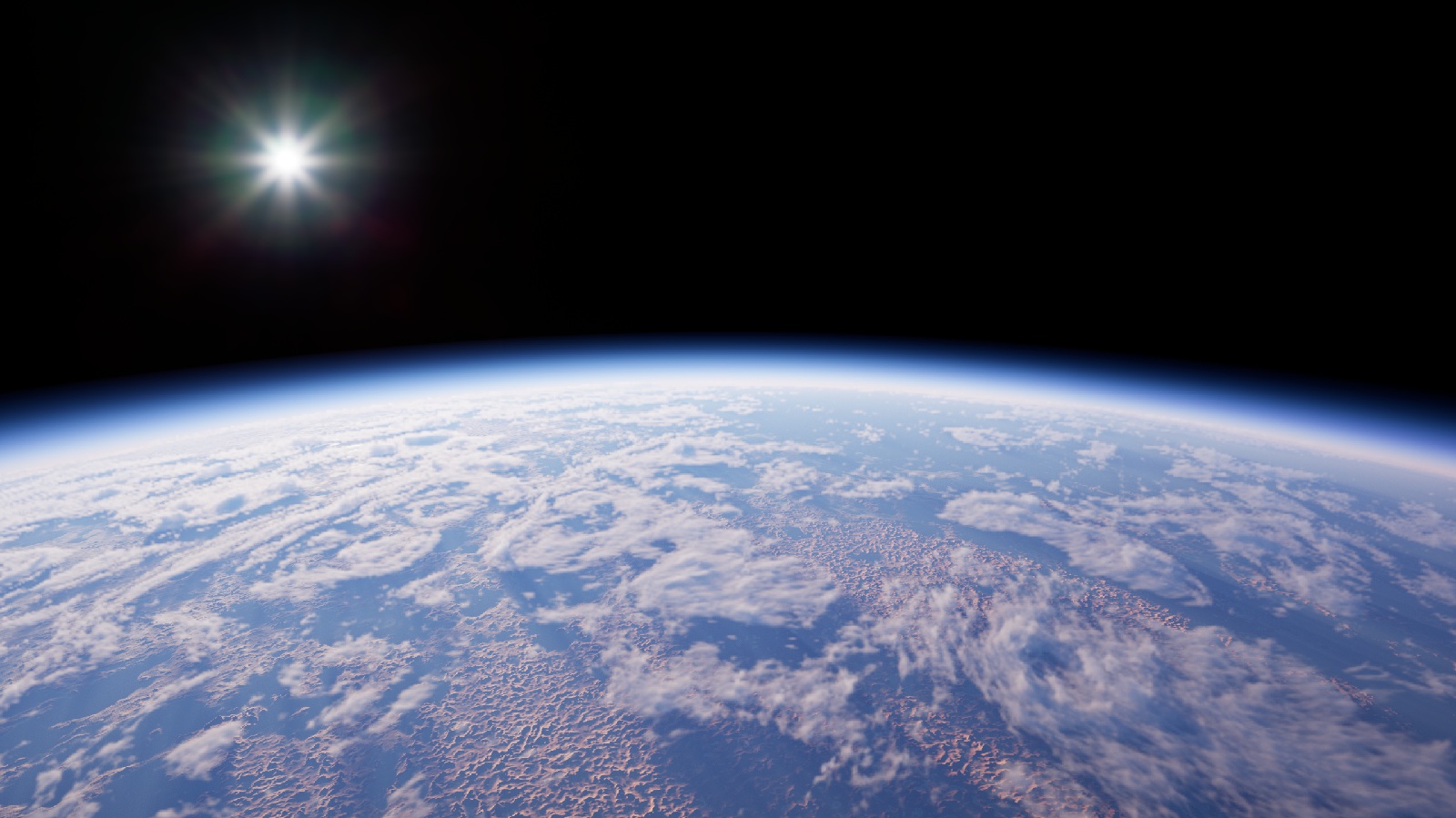

Example planet rendered with PPG

What PPG Provides

  • Runtime spherical terrain generation with streamed chunk meshes, configurable screen-space or distance-based LOD, generated surface normals, and editor-time regeneration.
  • Material-driven planet authoring with custom nodes for elevation, biome masks, vertex colors, biome material blending, planet-space coordinates, water, and underwater effects.
  • Planet-wide biome generation with up to 16 biome layers, Voronoi cell controls, smooth transitions, height blending, and name-synced material outputs.
  • Texture-masked terrain stamps and spline brushes for height sculpting, biome, material, foliage and vertex-color painting, and terrain cutouts.
  • Biome-based foliage spawning with mesh variants, density controls, slope and height filters, vertex-color masks, cross-chunk clustering, per-entry LOD/WPO settings, and CPU or GPU rendering paths.
  • Planetary ocean support with generated water meshes, seamless wave mapping, Single Layer Water shading, custom-depth underwater coverage, and a native GPU wave simulation.
  • Invoker-driven terrain and foliage collision streaming on a planet-wide virtual grid, independent of visible terrain LOD.
  • Planet navigation meshes for AI, with invoker, runtime region, and baked coverage.
  • Rendering options for standard static mesh chunks, Nanite terrain chunks, and ray tracing proxy generation for Hardware Lumen projects.
  • Multiple planetary atmospheres, a camera-following skylight, volumetric cloud parameter helpers, gravity-relative controller utilities, and a double-precision floating origin for spherical-world gameplay.
  • Cached Blueprint surface queries for biome strengths and distance above generated terrain.
  • Planet-relative editor camera controls for intuitive surface navigation and surface-aligned actor placement anywhere on a planet.
  • Blueprint-readable generation phase, progress, timing, and error reporting for loading screens and runtime diagnostics.
  • Example content, materials, data assets, and an example level to use as a working reference.

Main Workflow

  1. Place the planet spawner Blueprint in a level.
  2. Create or duplicate a Planet Data Asset.
  3. Assign the required planet, generation, and biome mask materials.
  4. Configure biome layers and matching material output entry names.
  5. Run Rebuild Planet Pipeline.
  6. Assign the Planet Data asset to the placed spawner.
  7. Build or regenerate the planet.

Repository Layout

ProceduralPlanetGeneration/
  Config/
  Content/
    Example/
    Materials/
    Water/
    Clouds/
  Shaders/
  Source/
    PPG/
    PPGEditor/
    ComputeShader/
    VoxelCore/

PPG is the main runtime module. PPGEditor contains the editor camera integration. ComputeShader contains the planet compute shader dispatch/readback layer. VoxelCore is bundled support code derived from VoxelCore, so users do not need to install a separate VoxelCore plugin.
